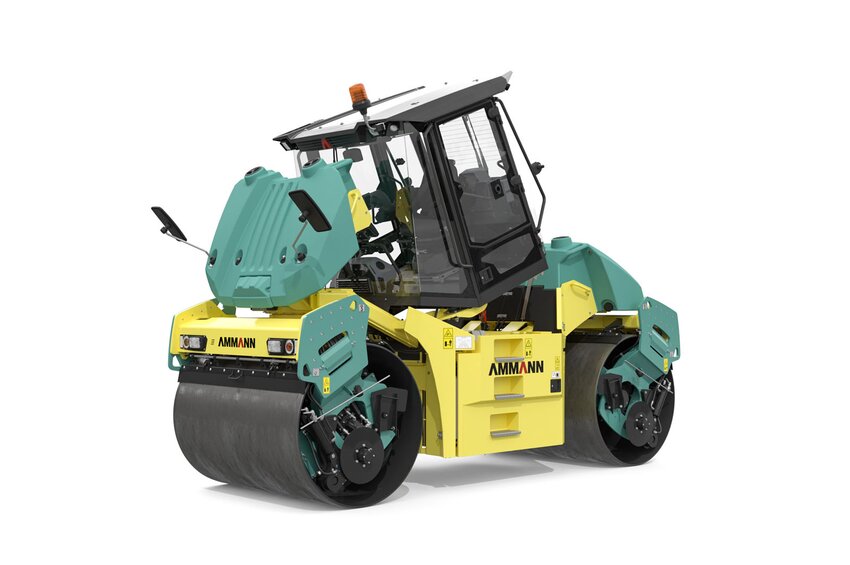

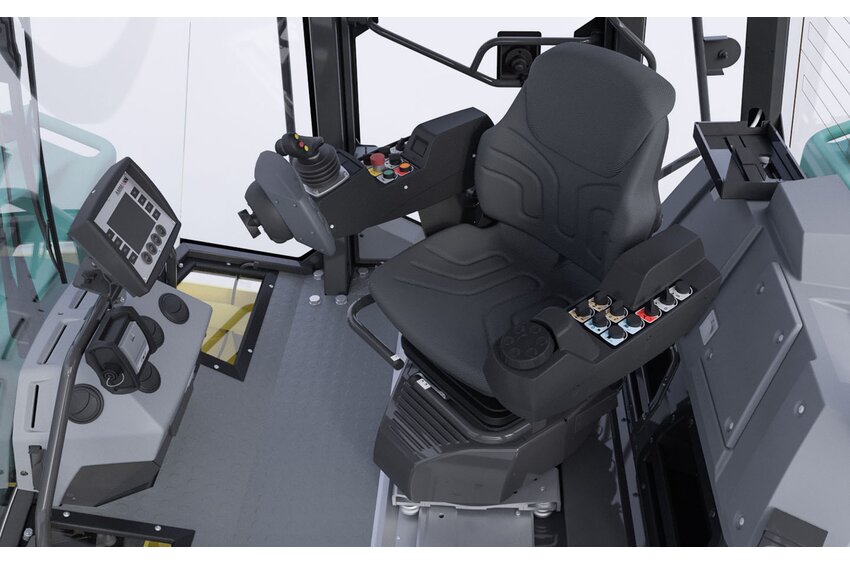

Weight & operating characteristics ARP 95

• Operating weight CECE: 9930 kg
• Operating weight max.: 11 505 kg
• Stat. lin. load of front drum: 26.6 kg/cm
• Stat. lin. load of rear drum: 29.5 kg/cm
• Travel speed: 10 km/h
• Gradeability with vibration: 25%
• Gradeability without vibration: 30%
• Turning radius inner (edge): 3065 mm
• Turning radius outer (contour): 4785 mm
• Oscillation angle: ±6°
• Angle of steering: ±25°

Weight & operating characteristics ARP 95 (ACE^pro)

• Operating weight CECE: 9970 kg
• Operating weight max.: 11 545 kg
• Stat. lin. load of front drum: 29.9 kg/cm
• Stat. lin. load of rear drum: 29.5 kg/cm
• Travel speed: 10 km/h
• Gradeability with vibration: 25%
• Gradeability without vibration: 30%
• Turning radius inner (edge): 3065 mm
• Turning radius outer (contour): 4785 mm
• Oscillation angle: ±6°
• Angle of steering: ±25°

Engine

• Manufacturer: Deutz TCD3.6 L4
• Power output ISO 14396: 74.4 kW (100 HP)
• Nominal speed: 2200 min-1 (RPM)
• Emission class: EU Stage V / U.S. EPA Tier 4 Final
• Exhaust gas after-treatment: EGR+DOC+DPF+SCR

Miscellaneous

• Drum offset: 1390 mm
• Max working offset mode: 3070 mm
• Brakes operating: Hydrostatic
• Brakes parking: Mechanical multiple-disc
• Brakes emergency: Mechanical multiple-disc
• Fuel tank capacity: 165 l
• DEF (Adblue) tank: 10 l
• Water tank capacity: 800 l
• Battery / capacity: 24 V / 2×55 AH

Compaction Forces ARP 95

• Frequency I: *38–42Hz
• Frequency II: *42–52 Hz
• Amplitude I: *0.65 mm
• Amplitude II: *0.28 mm
• Centrifugal force I: *74–91 kN
• Centrifugal force II: *39–60 kN

* Standard & ACEforce drum

Compaction Forces ARP 95 (ACE^pro)

• Frequency I: 42 Hz
• Frequency II: 52 Hz
• Amplitude I: 0.65 mm
• Amplitude II: 0.28 mm
• Centrifugal force I: 91 kN
• Centrifugal force II: 60 kN
• Frequency ACEpro min: 37 Hz
• Frequency ACEpro max.: 52 Hz
• Amplitude ACEpro max.: 0.85 mm
• Centrif. force ACEpro max.: 110 kN

Maximum recommended compacted lift thickness at optimal working conditions

• Rockfill: N/A
• Sand / gravel: 400 mm
• Mixed soils: 300 mm
• Silt: N/A
• Clay: N/A
• Stabilisation: 200 mm
• Asphalt: 140 mm
