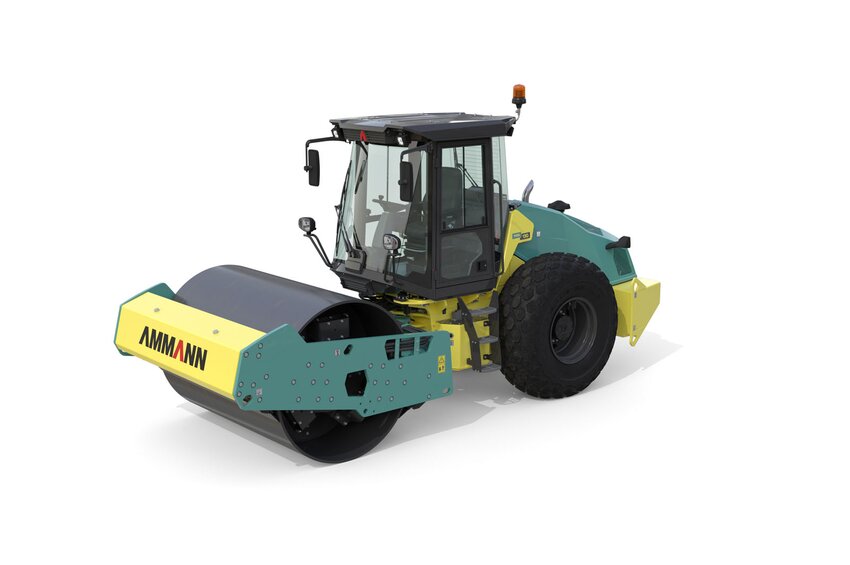

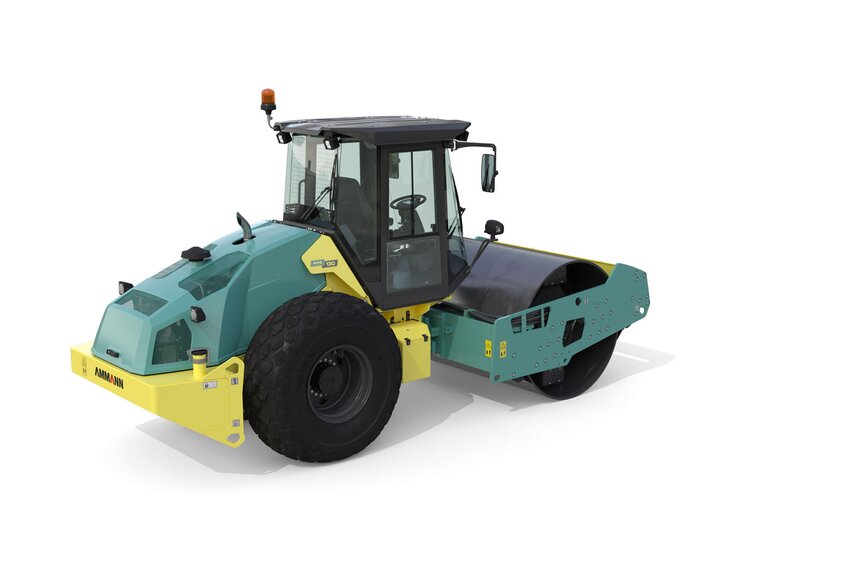

Dimensions
- Machine length: 5900 mm
- Machine length (blade): 6610 mm
- Wheelbase: 2990 mm
- Machine height: 2970 mm
- Machine height (operator seat): 2200 mm
- Drum width: 2130 mm
- Machine width: 2260 mm
- Machine width (blade): 2440 mm
- Curb clearance: 400 mm
- Ground clearance: 430 mm
- Drum diameter: 1500 mm / *1694 mm
- Drum thickness: 25 mm /*20 mm
*PD
Engine:
- Manufacturer: Deutz TCD 3.6L4
- Power output ISO 14396: 100 kW (134 HP)
- Exhaust gas after-treatment: EGR+DOC+DPF / EU Stage V / U.S. EPA Tier 4 Final
Weight & operating characteristics
| HX | PD | HYPD | ||
|---|---|---|---|---|
| Operating weight | 12 580 kg | 12 670 kg | 13 205 kg | 13 295 kg |
| Max. weight | 15 150 kg | 15 240 kg | 14 260 kg | 14 350 kg |
| Static linear load | 33.8 kg/cm | 34.1 kg/cm | – | – |
| Pad contact surface | – | – | 120 cm² | 120 cm² |
| Pad height | – | – | 100 mm | 100 mm |
| Max. transport speed | 12 km/h | 10 km/h | 12 km/h | 10 km/h |
| Max. working speed | 7.6 km/h | 5.1 km/h | 7.6 km/h | 5.1 km/h |
| Climbing ability without /with vibration | 48% / 45% | 68% / 52% | 50% / 45% | 68% / 52% |
| Turning radius (inner) | 3625 mm | 3625 mm | 3625 mm | 3625 mm |
Compaction forces
| PD | ||
|---|---|---|
| Frequency I | 25–31 Hz | 25–31 Hz |
| Frequency II | 25–35 Hz | 25–35 Hz |
| Amplitude I | 1.95 mm | 1.7 mm |
| Amplitude II | 0.83 mm | 0.72 mm |
| Centrifugal force I | 186–285 kN | 186–285 kN |
| Centrifugal force II | 79–155 kN | 79–155 kN |
Miscellaneous
- Brakes operating: Hydrostatic
- Parking brakes: Multiple-disc spring brake
- Emergency brakes: Multiple-disc spring brake
- Fuel tank capacity: 345 l
- Articulation angle: ±36°
- Oscillation angle: ±10°
