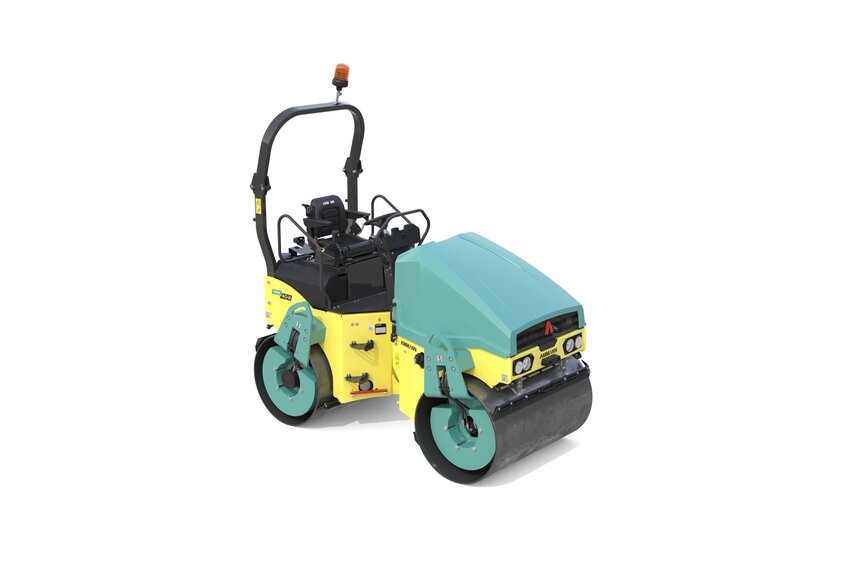

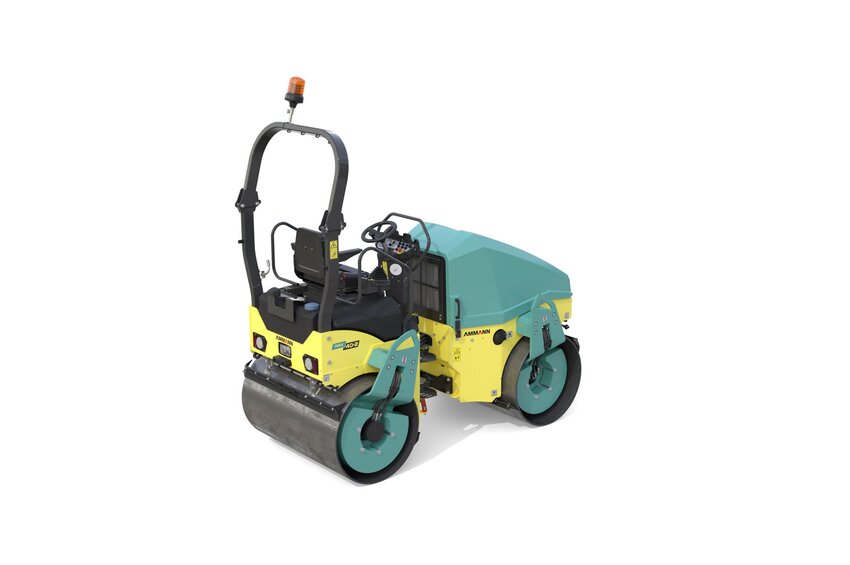

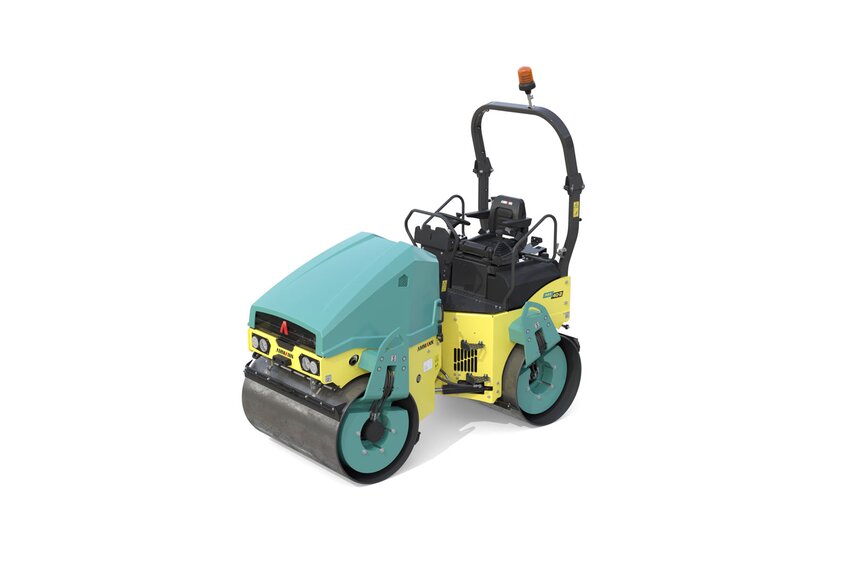

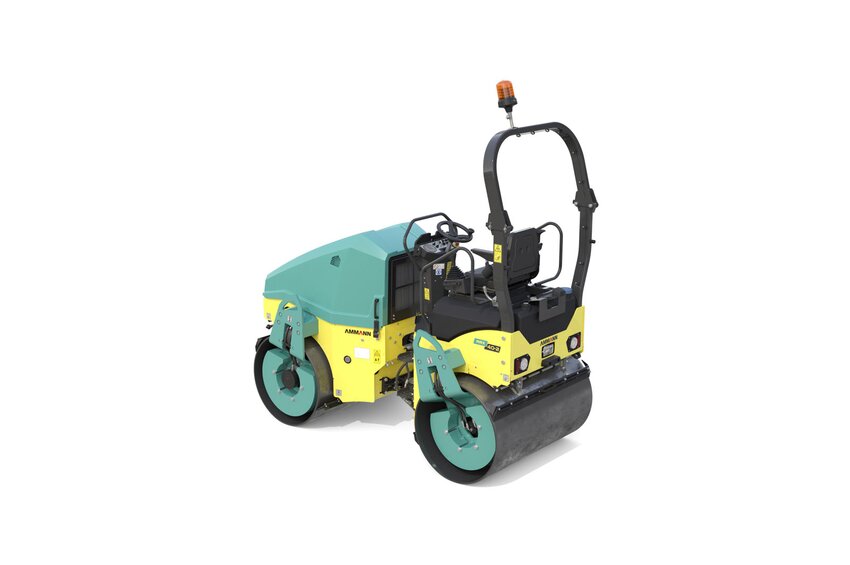

Dimensions ARX 40-2 tandem vibratory roller & ARX 40-2 light tandem vibratory roller
- Machine length: 2915 mm
- Wheelbase: 1950 mm
- Machine height: 2840 mm
- Machine height (folder rops): 2150 mm
- Drum width: 1300 mm
- Working width with offset: 1340 mm
- Machine length (folded rops): 3000 mm
- Ground clearance: 330 mm
- Side clearance: 605 mm
- Drum diameter: 850 mm
- Drum shell thickness: 18 mm
- Machine width (total): 1385 mm
Weight & operating characteristics
| ARX ARX 40-2 tandem vibratory roller | ARX 40-2 light tandem vibratory roller | |
|---|---|---|
| Operating weight: | 4200 kg | 4175 kg |
| Operating weight max.: | 4490 kg | 4465 kg |
| Stat. lin. load of front drum: | 15.6 kg/cm | 15.6 kg/cm |
| Stat. lin. load of rear drum: | 18.2 kg/cm | 18 kg/cm |
| Turning radius inside: | 2830 mm | 2830 mm |
| Steering / oscillating angle: | 35/9 ±° | 35/9 ±° |
| Drum offset: | 40 mm | 40 mm |
Engine
| ARX ARX 40-2 tandem vibratory roller | ARX 40-2 light tandem vibratory roller | |
|---|---|---|
| Engine Type: | Kubota D1803-CR-T | Kubota V2403-M |
| Emission class: | EU Stage V / U.S. EPA Tier 4 Final | EU Stage IIIA / U.S. EPA Tier 4i |
| Power output ISO 3046: | 32.8 kW (44 HP) | 34.1 kW (45.7 HP) |
| Cylinder / ltr.: | 3 cyl / 1826 cm³ | 4 cyl / 2434 cm³ |
| Nominal speed: | 2400 rpm | 2400 rpm |
| Travel speed: | 10 km/h | 10 km/h |
| Gradeability with / without vibr.: | 30 % / 40 % | 30 % / 40 % |
Compaction Forces ARX ARX 40-2 tandem vibratory roller & ARX 40-2 light tandem vibratory roller
- Amplitude I: 0.4 mm
- Amplitude II: 0.6 mm
- Frequency I: 41 Hz
- Frequency II: 55 Hz
- Centrifugal force I: 42.4 kN
- Centrifugal force II: 53.8 kN
- Centrifugal force III: 55 kN
Miscellaneous Forces ARX ARX 40-2 tandem vibratory roller & ARX 40-2 light tandem vibratory roller
- Battery / capacity: 12/77 V/Ah
- Water tank: 340 L
- Hydraulic tank: 53.5 l
- Diesel fuel tank: 57 l
